Front Coil Spring Specs:

• C59-238 - 0.75-1.0" Lift Stock Load
• C59-296 - 1.5" Lift Stock Load
• C59-300 -  1.8" Lift Stock Load
• C59-302 - 2.5" Lift Stock Load, 2" w/150LBS Added Load
• C59-314 -  2.5" Lift w/ 80-150lb Added Load
• C59-352 - 2.5" Lift w/ 220-300lb Added Load

Rear Coil Spring Specs:

• C59-323 - Stock rear end, 0.5" lift
• C59-599 - Stock rear end, 1.5" lift
• C59-505 - Stock rear end, 2" lift
• C59-325 - Stock rear end, 2.5" lift
• C59-327 - 220-440lb Constant Load, 2.5" lift
• C59-329 - 660-880lb Constant Load, 2.5" lift
• C59-331 - 900-1000lb Constant Load, 2.5" Lift
• C59-675V - Variable rate comfort option, stock rear weight, 3" lift
• C59-677V - Variable rate option, 200LB heavy rear load weight, 3" lift
• C59-701V - Variable rate, 400-600lbs heavy rear load weight, 3" lift
• C59-749V - Variable rate, 700-800lbs heavy rear load weight, 3" lift
• C59-849V - Variable rate, 1000lbs+ heavy rear load weight, 3" lift
• C59-849V - Variable rate, 1000lbs+ heavy rear load weight, 3" lift

Product Features:

• All rear heights are measured on a vehicle with 3rd row seating
• Complete suspension kit for 4x4 Off Road Use, fine tuned to match the vehicle
• Coils are specifically suited to the additional accessory load (weight) on the vehicle
• Nitrogen Gas Charged Shocks, Superior Design, thicker walls, longer travel
• High Quality Australian-made coil springs, heat treated, fully scragged, powder coated

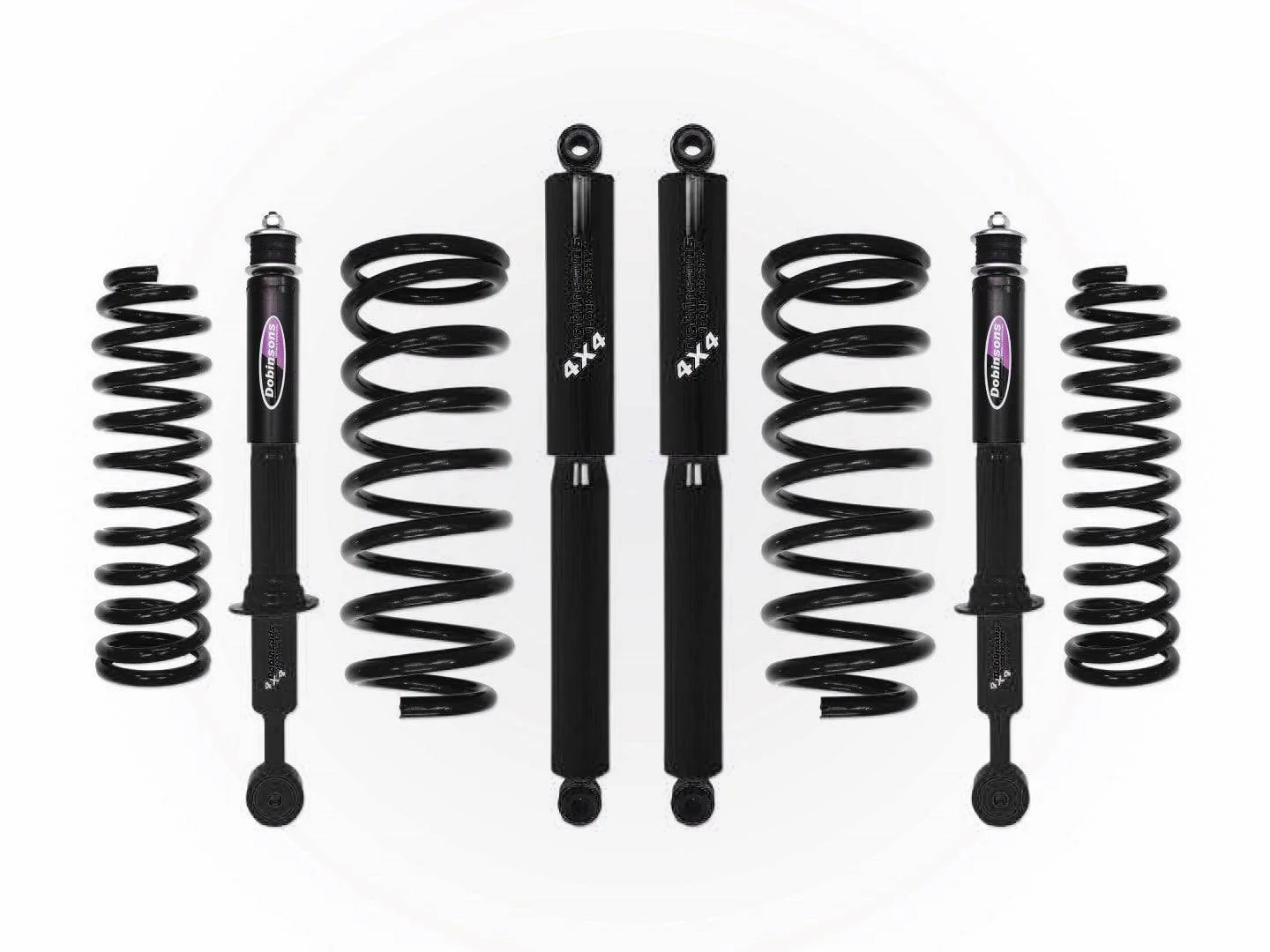

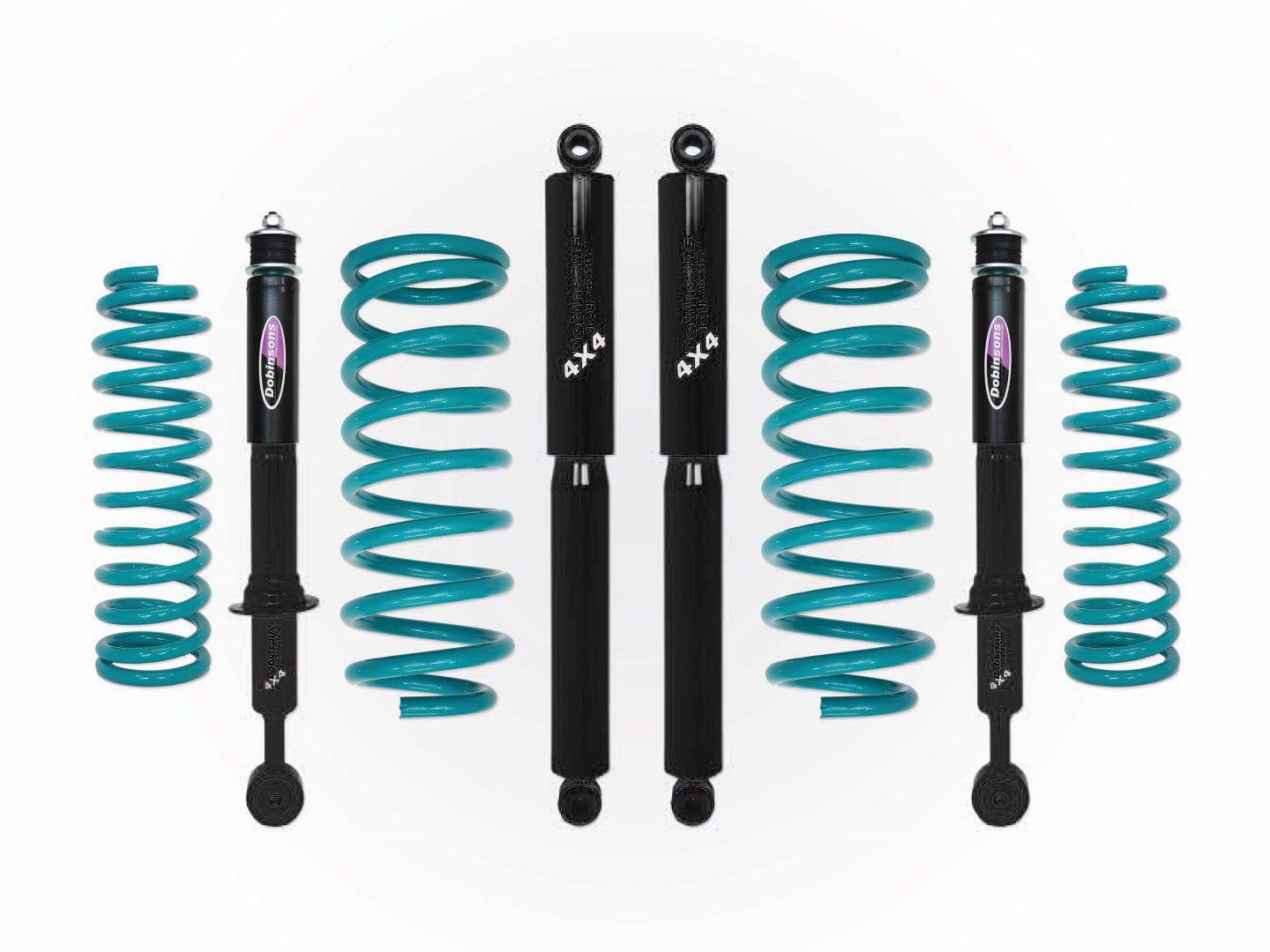

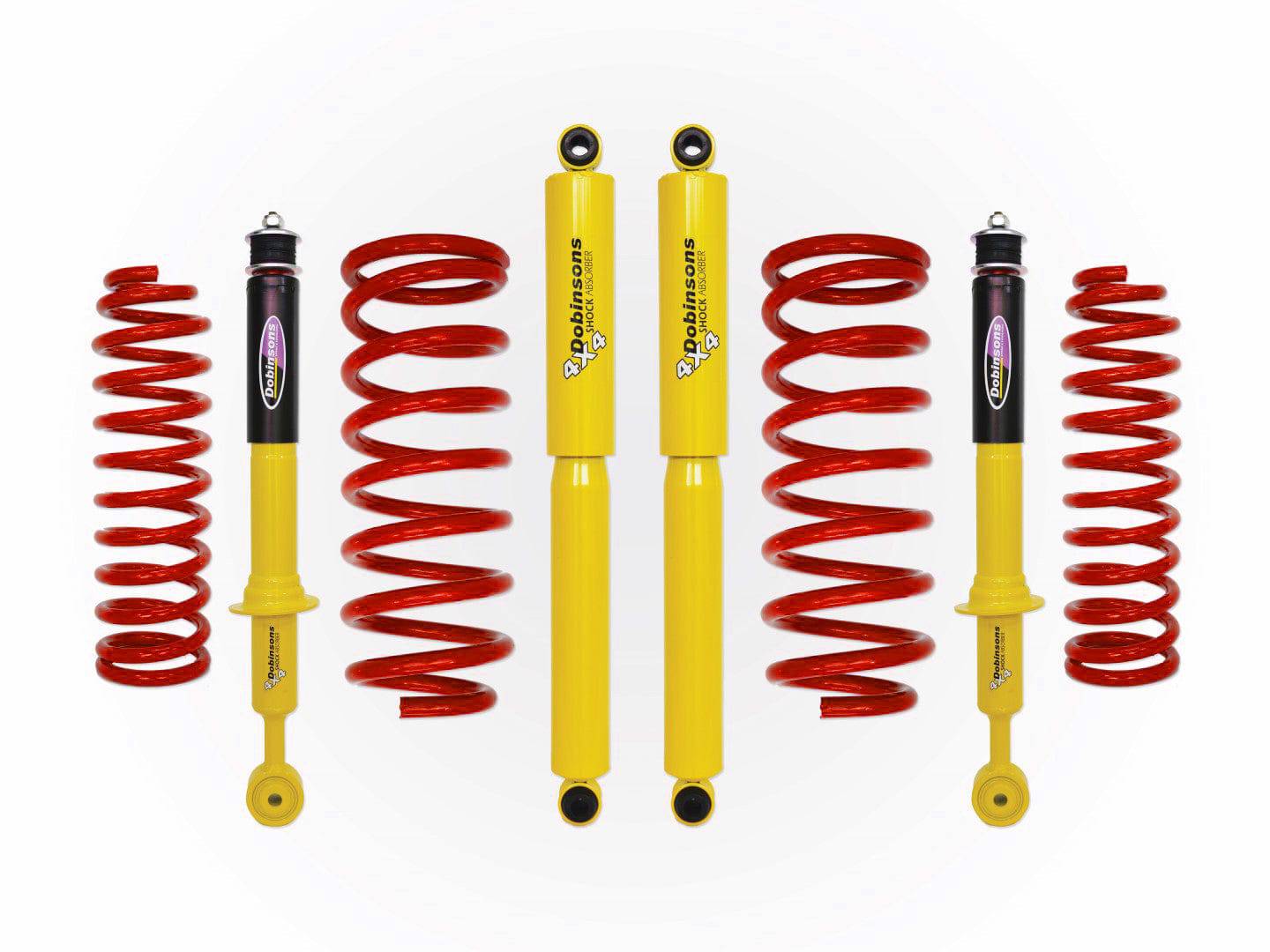

• Base Kit Includes 2 Front Struts, 2 Rear Shocks, and 4 Coil Springs
