Overview:
Complete high-clearance radiator conversion kit for 1996–2002 4Runners and 1995–2004 Tacomas with the 3.4L V6. Replaces the vulnerable, low-hanging OEM radiator with a compact, frame-height aluminum unit for improved protection and cooling.
– Raises radiator above frame rails to eliminate common trail damage
– Fully bolt-on kit includes pre-formed hose and clamps
– Available in Premium OE or High Performance all-aluminum configuration
– Improves cooling efficiency and fluid capacity
– Compatible with most skid plate systems, including Opt Offroad’s

Specifications:

Premium OE Package:
– CSF 1-row aluminum core radiator with molded plastic tanks
– 23 7/8" H × 28 1/8" W
– Includes two stainless steel hose clamps and custom lower radiator hose
– Bolt-on design with transmission cooler fittings
– Includes cap

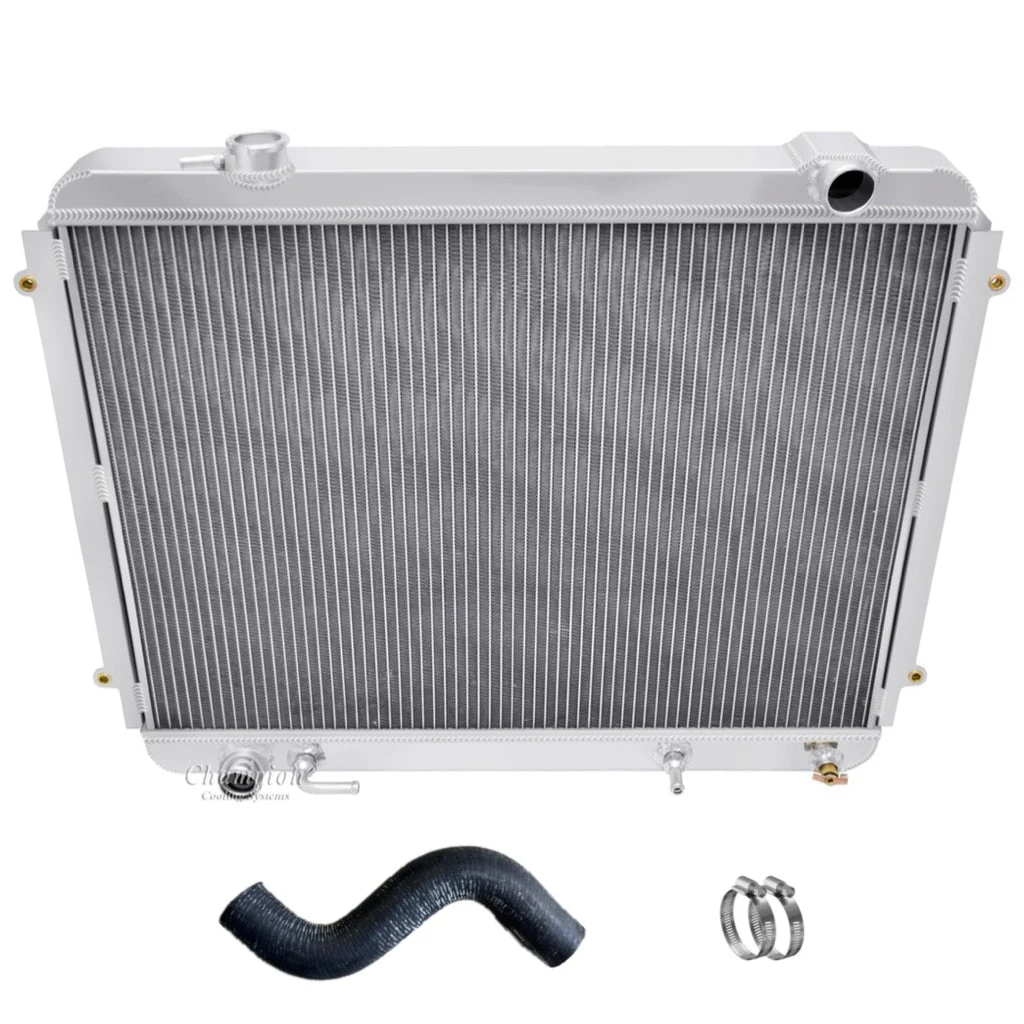

High Performance Package:
– Champion 3-row TIG-welded aircraft aluminum radiator
– 23 1/2" H × 28 1/8" W
– Rated for up to 550 HP
– 2mm thick core, 3/8" tube spacing, 14–16 FPI
– Billet fill neck with 16 lb cap
– Includes hose, clamps, and fittings

High Performance Package:
Improving on the Champion unit, this Premium HP Kit includes a full aluminum Cold Case radiator with better fit and finish, plus a more efficient 2-core design that cools better than Champion 3-core radiators.

-(2) Stainless steel worm gear hose clamps
-(1) Custom pre-formed lower radiator hose
-(1) Cold Case premium high-performance radiator
-TIG-welded polished aluminum construction
-2-row core design
-Factory bolt-on fit with transmission cooler fittings
-Dimensions: 23 1/2" H x 28 1/8" W x 2 1/4" D
-16 fins per inch with 1" thick cores
-Billet fill neck with cap included

Fitment:
1996–2002 Toyota 4Runner (3.4L V6 or 2.7L with alternate lower hose)
1995–2004 Toyota Tacoma (3.4L V6 or 2.7L with alternate lower hose)

Notes:

Coolant-

• OE Replacement: CSF recommends following factory specifications.
• High Performance: Champion and Cold Case recommend Ethylene-based yellow/green coolant & distilled water only, to prevent premature wear on your radiator. Peak 10X is a great choice, as it is formulated to work with all vehicles and cooling systems, and has been thoroughly tested to work with these all-aluminum radiators. Using other coolant types can potentially affect your warranty. While "Asian Red" and "Toyota Pink" coolants are Ethylene-based, they have been known to cause issues with the full aluminum housings, and are discouraged for this setup.

Body Lifts & Radiator Hoses- If you have a body lift, then the distance between your engine and lower hose has been reduced. You may need to trim some excess length off your new lower radiator hose to accommodate the angle perfectly. You are responsible for ensuring hoses are kink-free prior to filling cooling system or running your engine!

Fan Shroud- Your factory shroud is reusable for this kit! However, there will be excess length at the bottom which can be easily trimmed off with a razor blade to match the height of the new radiator. We are currently working on a plug and play shroud.
