Overview

The Heretic BA-4 Flush Mount LED Light Pod is known as the big brother to our staple BA-2 Flush Mount LED Light Pod. The 6-series BA-4 Flush Mount LED pod light is an optimal chase light to a ditch light, A-pillar light and beyond. These high performance clear LED pod lights are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The BA-4 Flush Mount LED Light Pod is recommended on the front or rear bumpers of trucks, jeeps, SUVs, and UTVS. They can also be used on the sides and rear of roof racks as a chase light. They are specifically designed to align with the curvature of your vehicle or UTV and are best for clear night conditions.

Features

• (1) BA-4 Flush Mount LED Light Pod
• USA Patented 6061 CNC Aluminum Grade Billet Housing
• (4) 6-watt CREE LED
• Designed, Assembled, Supported, and Shipped in Centerville,Utah
• Customize Your Beam Pattern: Spot, Flood, or Combo
• Custom Bezel Offerings - Contact Heretic Studio

Vehicle Application

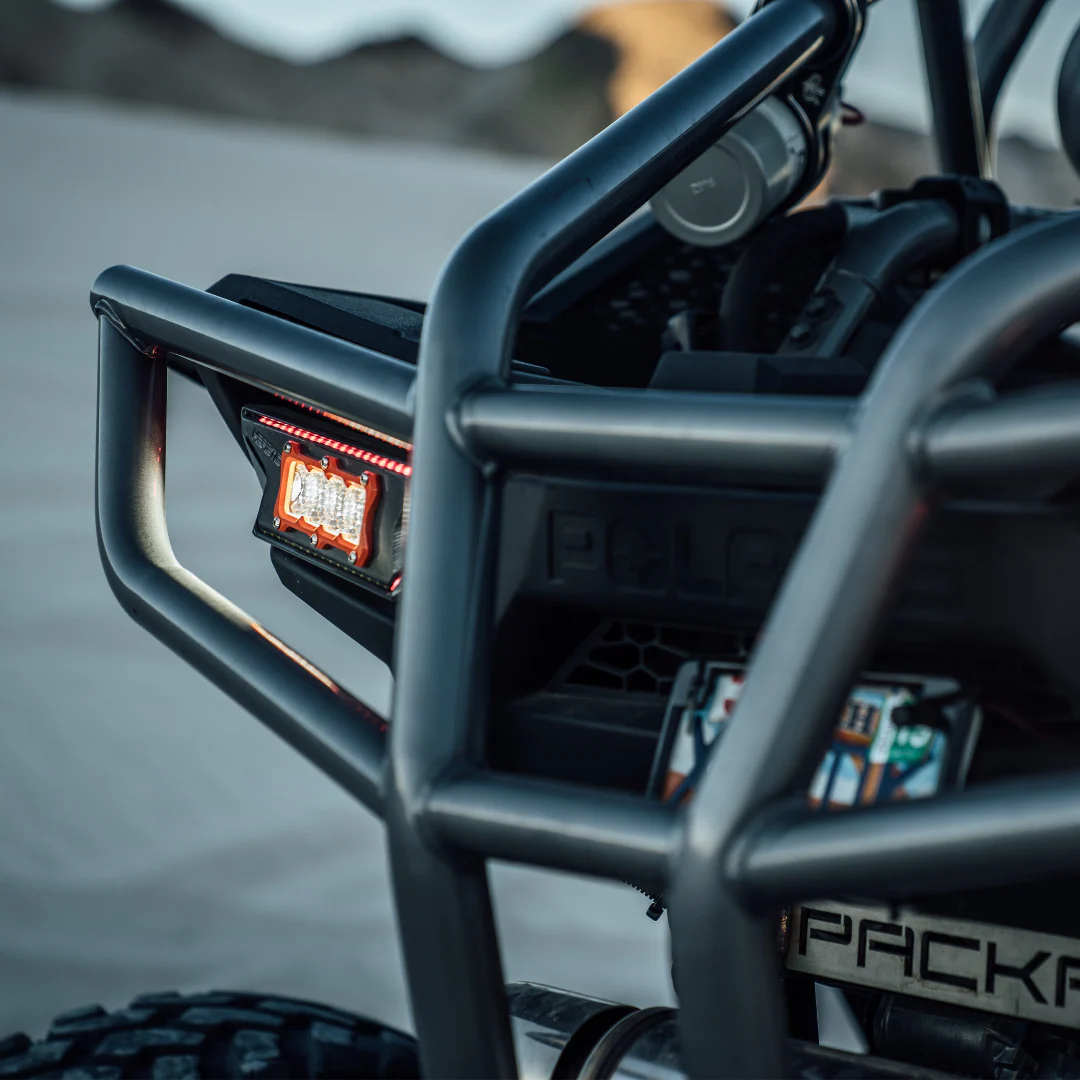

Front Bumpers for both trucks and UTVs. Sides and rears of roof racks as scene lights. Can be used as chase lights for UTVs with an amber lens.

Parts Sold Separate

• Wiring Harness
• Aftermarket Mount for Roof Rack Attachment
• Amber Lens Attachment

Details/Specs

Shipping Weight: 4lbs
Type: 4” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location:
Light Color: White
Lens Color: Clear
Wattage: 24W
Amp Draw at 13.8V: 2A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 5” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 5” x D 2.1” x H “2.4
Lumens: 3000 lm
Lux At 10m:

• Spot: 825 lx
• Flood: 176 lx
• Combo: 500 lx

Candela:

• Spot: 82500 cd
• Flood: 17550 cd
• Combo: 50025 cd

Beam Distance:

• Spot: 574 m
• Flood: 265 m
• Combo: 447 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No
